LT PANELS

Download our complete brochure

We are a world class manufacturer and exporter of Power Conditioning Solutions providing the best quality products and services to our customers.

Download

LT Panel is an electrical distribution board that receives power from generator or transformer and distributes the same to various electronic devices and distribution board. Our LT panels are designed to work with low electricity consumption that makes them cost effective. We manufacture following type of LT Panels :-

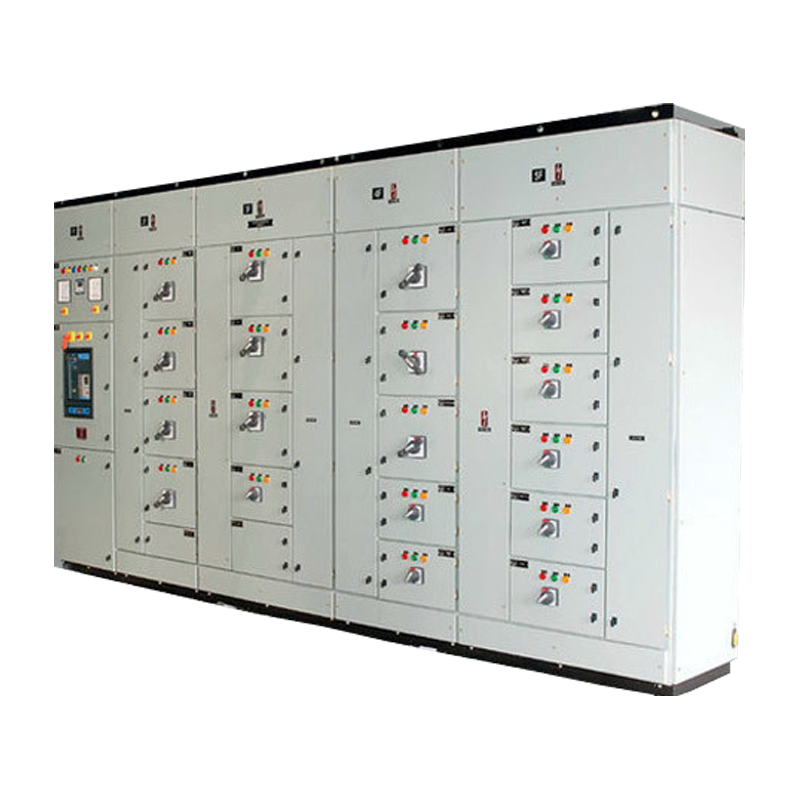

Power Control Center (PCC)

We offer PCC Panel with a current carrying capacity up to 6300 Amp. We have short circuit type test Certificate of 65 KA/1sec from CPRI. Our PCC Panel integrated with all necessary protections to ensure that it meets all safety standards prevailling in the industry. As a special feature we provide energy management system through which you can have one month record of energy data of all feeders.

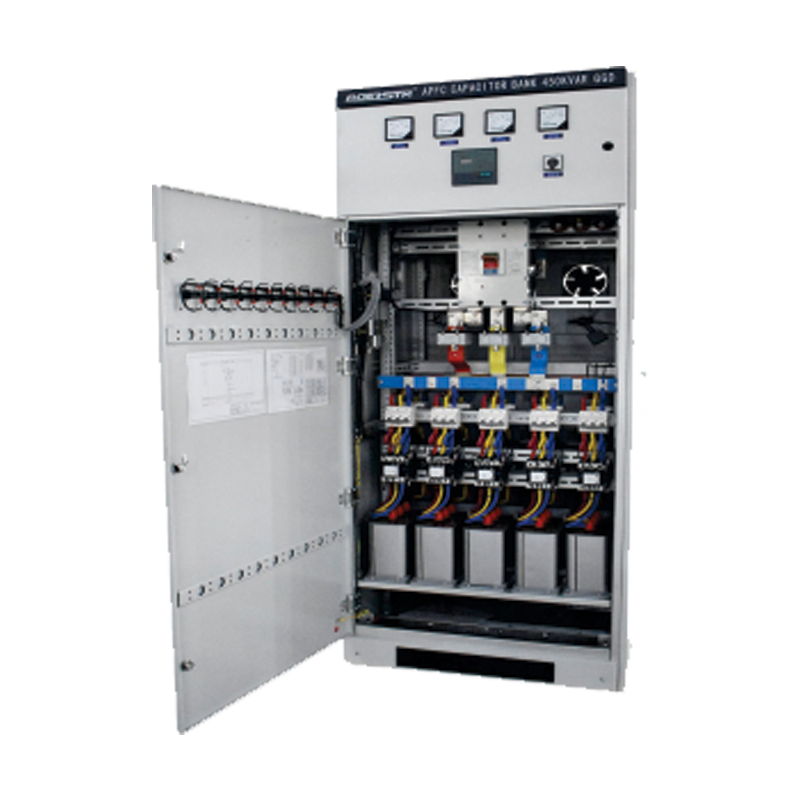

Automatic Power Factor Correction Panel (APFC)

We offer APEC Panel controlled through Thyristor cards or contactor based depends on nature of Load. To overcome harmonic effects we use detuned reactors. We supply the panels with APP/MPP Heavy duty capacitor banks as per characteristics of electrical loads. This panel is of great use to minimize loss and wastage of energy and heavy penalties by electricity boards.

CT & PT Panels

A current Transformer (CT) consitutes the principle measuring device for protection and metering purspose in any power system. The Class of accuracy for metering CT's are 0.1, 0.2, 0.55, 0.5 & 1.0 and in case of protection CT's, it is 5P20 & 10P10.

Indoor cast resin CT's for switch gears upto 33Kv

Bus Duct CT's upto 33Kv

Automatic Power Factor Correction Panel (APFC)

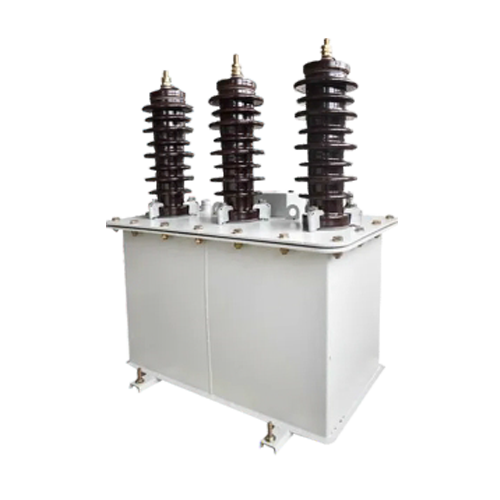

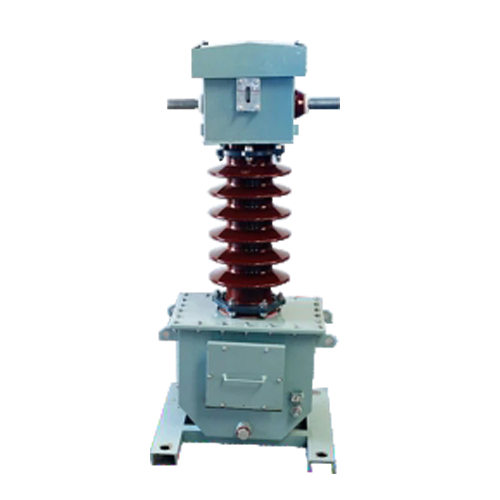

A Potential Transformer (PT) plays a key role in Electrically Isolating the instrument and relays from the high voltage side and for Transferring voltage from higher values to proportional lower values upto 63.5V, 100V, 110V or as per standard equipement. The Class of accuracy of metering PT are 0.1, 0.2, 0.5, 1.0 and protection is 3P.

Indoor cast resin & Oil Cooled PT's

Outdoor Oil Cooled type PT's
