ONLINE TRANSFORMERLESS UPS

1 Kva ~ 3 kva ( 1:1 phase 0.9 pf )

Download our complete brochure

We are a world class manufacturer and exporter of Power Conditioning Solutions providing the best quality products and services to our customers.

Download

First time in India, Servokon introduces a revolutionary "Next Generation of Mainline Voltage Stabilizer" It provides constant output voltage to your home appliances along with many special features.

Features

High frequency on-line double conversion technology

DSP (Digital signal processors) control technology

Active power factor correction (APFC), Ensure input power factor up to 0.99

Output power factor 0.9

Wide input voltage range (110 V ~ 300 Vac) and frequency range (40 ~ 70 Hz)

Auto sensing frequency

50/60 Hz frequency conversion

Cold start

Built-in Isolation Transformer (Optional)

Intelligent fan speed control

Quick and stable charging, 90% capacity restored in 4h (standard model UPS)

Advanced battery management (ABM)

Multiple functions settable via LCD: output voltage, EOD, auto-start, bypass mode, ECO mode and frequency conversion mode

Multi-platform communications: RS232 (standard), USB/ Rs485 / SNMP / dry contacts ( optional)

Optional USB, RS485 card, AS400 dry contacts, SNMP card, SMS alarms, EPO function, and 12 A charger (2/3 kVA only)

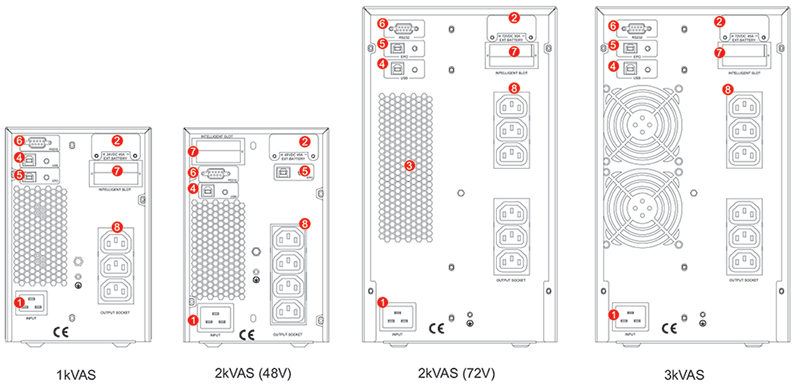

Rear Panel

AC input socket

Battery connector (Optional)

Fan

Output power factor 0.9

USB (Optional)

EPO (Optional)

RS232

Intelligent slot (Optional)

Output sockets

ZENITH SERIES

1 KVA ~ 3 kVA ( 1:1 PHASE 0.9 PF )

SPECIFICATIONS

MODEL	ZENITH-1101T3	ZENITH-1102T3	ZENITH-1103T8
Capacity	1kVA/ 900 W	2 kVA/	1800 W
INPUT
Rated Voltage	208 / 220 / 230 / 240 Vac
Voltage Range	110 ~ 176 Vac (Load Dependent and 100% load ); 176 ~ 290 V
Frequency	40 ~ 70 Hz (auto-sensing)
Power Factor	≥ 0.99
Bypass Voltage Range	- 25% ~ +15% (settable)
OUTPUT
Voltage	208 / 220 / 230 / 240 Vac (settable via LCD)
Voltage regulation	±1%
Frequency	50 / 60 Hz ± 2.5 Hz (battery mode)
Waveform	Pure Sinusoidal Waveform
Power factor	0.9
Total harmonic distortion (THDv)	≤ 2% (linear load), ≤ 5% (non-linear load)
Crest factor	3:1
Overload	≤ 110% for 10 Mins, 125% for 1 min, 125% ~ 150% for 30 sec
BATTERIES
DC voltage	36 V	96 V
Inbuilt battery	3 Nos X 7 Ah / 9 Ah	8 Nos x 7 Ah / 9 Ah
Charging current (standard)	1A / 5A
Recharge time	Standard model: 90% capacity restored in 3 hours: Long Time Model: depend on the capacity of battery
SYSTEM
Efficiency	≥ 90%	≥ 96% (Green mode)
Transfer time	Mains mode to battery mode: 0 ms Inverter mode to bypass mode: 4 ms (typical)
Protections	Short-circuit, overload, overtemperature, battery discharge protection and fan testing protection
Communications	RS232 (standard), USB / RS485 / dry contacts / SNMP (optional)
Display	LCD + LED
Standards	EN 62040-1, EN 62040-2, EN 61000-3-2, EN 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-2-2, IEC 62040-2, IEC 62040-1, IEC 62040-3
OTHERS
Operating temperature		0⁰C ~ 40⁰C
Storage temperature		-25 c ~ 55 c (without batteries)
Relative Humidity	0 ~ 95% (non-condensing)
Altitude	≤ 1000 m, derating 1% for each additional 100 m
IP rating	IP 20
Noise level at 1m	≤ 50 dB
Dimensions (WxDxH) (mm)	144 x 336 x 216	191 x 419 x 335
Net weight (kg)	6 kg	11 kg
Gross weight (kg)	7 kg	12.5 kg
